| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P6241D-4010U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Haswell-U I3-4010U Dual Cores 4 Threads 1.7Ghz | RAM: | Onboard 2GB/4GB DDR3L |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 6*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | I3 Mini Itx Motherboard,Mini Itx Motherboard FCBGA1168,i5 itx motherboard 6COM |
||
Haswell 4th generation FCBGA1168 Core i3 i5 i7 6COM mini itx motherboard Queuing machine mainboard
Notice :
When you inquiry , you can choose the following Model :
ITX-P6241D-4TH-I3 ,Integrated Intel® Haswell-U i3-4010U dual cores 4 threads 1.7Ghz processor
ITX-P6241D-4TH-I5 ,Integrated Intel® Haswell-U i5-4200U /4300U dual cores 4 threads 1.6~2.6Ghz /1.9~2.9Ghz processor
ITX-P6241D-4TH-I7, Integrated Intel® Haswell-U i7-4500U dual cores 4 threads 1.8~3.0Ghz processor
Haswell-U i3-4010U dual cores 6 COM VGA lvds mini itx industrial motherboard onboard 4G ram
Key features
Integrated Intel® Haswell-U i3-4010U dual cores 4 threads 1.7Ghz processor
Support Dual Channel DDR3L 1066/1333/1600MHz
Onboard 2GB/4GB DDR3L
Intel HD Graphics 4400
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
6*COM
1*Gigabit LAN
2*USB2.0
4*USB3.0
2 * SATAIII interface
Onboard SSD 16 / 32 / 64 / 128G
1 * Mini-PCIe M-SATA Scoket
Support touch panel 4wire 5wire 8wire(optional)
Mini-itx 170 x 170 mm
DC 12V Power supply
Specifications
| PROCESSOR | CPU |
Intel® Core™ 4th generation Haswell-U Soc i3/i5/i7 processor Integrated Intel® Haswell-U i3-4010U dual cores 4 threads 1.7Ghz processor
|
| CPU Package | BGA1168 | |
| CHIPSET | Intel® Haswell-U SOC series | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Dual Channel DDR3L 1066/1333/1600MHz |
| Capacity | Onboard 2GB/4GB DDR3L | |
| RAM Slot |
1x RAM slot ,max. 8GB RAM (with 4GB +onboard 4GB for dual channel) |
|
| VIDEO | Graphic Controller | Intel HD Graphics 4400(I3-4010U)Graphic core depends on CPU |
| Dual LVDS | Dual-channel 24bit LVDS to max. 1920 x 1200 resolutions | |
| VGA | VGA support max. Resolutions :2048x1536 | |
| HDMI | HDMI1.4 | |
| Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |

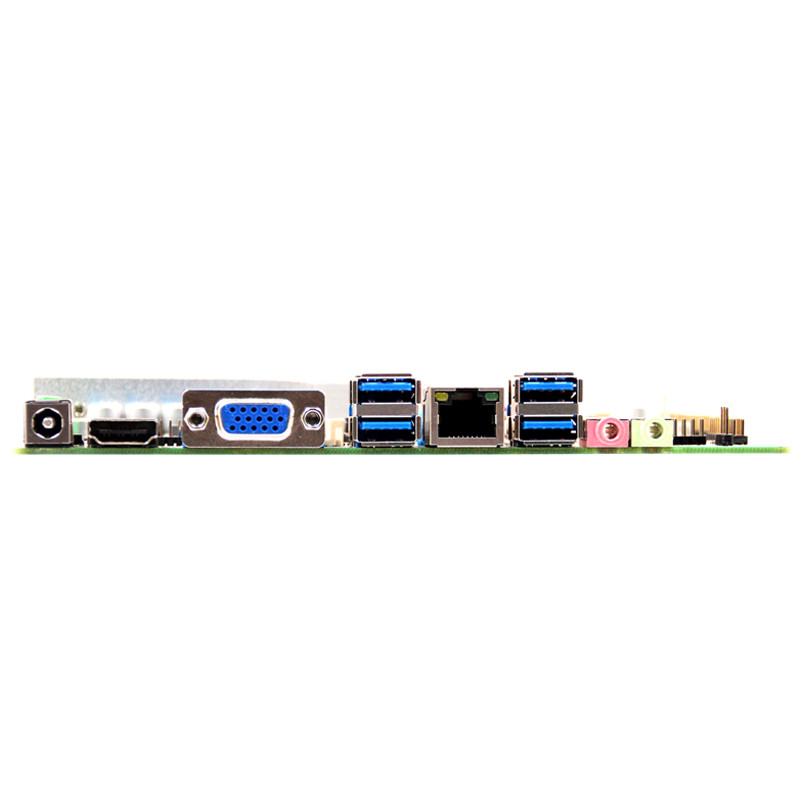

| I/O Panel | I/O |
1*VGA 1*HDMI 1*LAN 4*USB3.0 1*MIC-OUT LINE-OUT 1*SPDIF |
| NETWORK | CONTROLLER | RTL8111E-V 1000M LAN x 1 ,RJ45 |
| AUDIO | CONTROLLER | REALTEK HD ALC662 Audio (MIC+SPK) |
| Super I/O | CONTROLLER | NCT6106D |
| HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional |
| Cooler | Alluminum Alloy heat sink with Fan | |
| I/O | USB |
4*USB3.0 compatible USB2.0 / 1.1 2*USB2.0,max. Support +5V/1A |
| Series port | 5*RS-232, 1*RS422/485,RS485 Support automatic flow control | |
| PS/2 | 1*PS/2 Pin Headers | |
| Touch Panel | Supported Resistance TP 4/5/8 wires | |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
| EXPANSION BUS | Mini-PCle | 2*Mini-PCIe slot,Support PCIe and USB device |
| STORAGE | SATA | 2*SATA3.0 , 6GB/s maximum speed |
| Onboard SSD and HDD(SATA) | Onboard SSD(16-128GB) or HDD (SATA) | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol , 6gb/s maximum | |
| POWER SUPPLY | Power supply TYPE | Single DC input,DC12V,+/-5% |
| Power supply consumption | 35W | |
| Working Environment | Working Temperature | -20℃ ~ +60℃s |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90% (non-condensing) | |
| Storage Humidity | 0% ~ 90% (non-condensing) | |
| Form factor | Size | 170 x 170 mm |
| Weight | 0.5KG |
