| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P5801D-PV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Ntel ® Atom® Processor D525 Dual Cores 4 Threads 1.8Ghz | RAM: | 2GB DDR3 |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | LVDS+VGA Dual Display |
| COM: | 2*COM (5*RS232 COM, 1*RS-485/RS-422) | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | Mini Itx Motherboard 6COM,2GB Mini Itx Motherboard,Dual Core DDR3 Itx Motherboard |
||

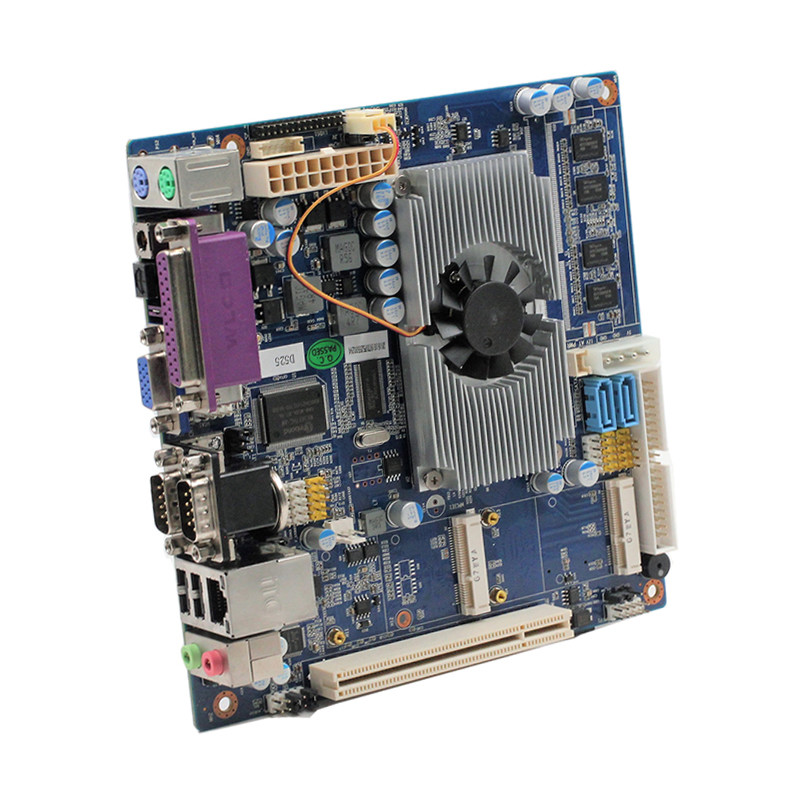

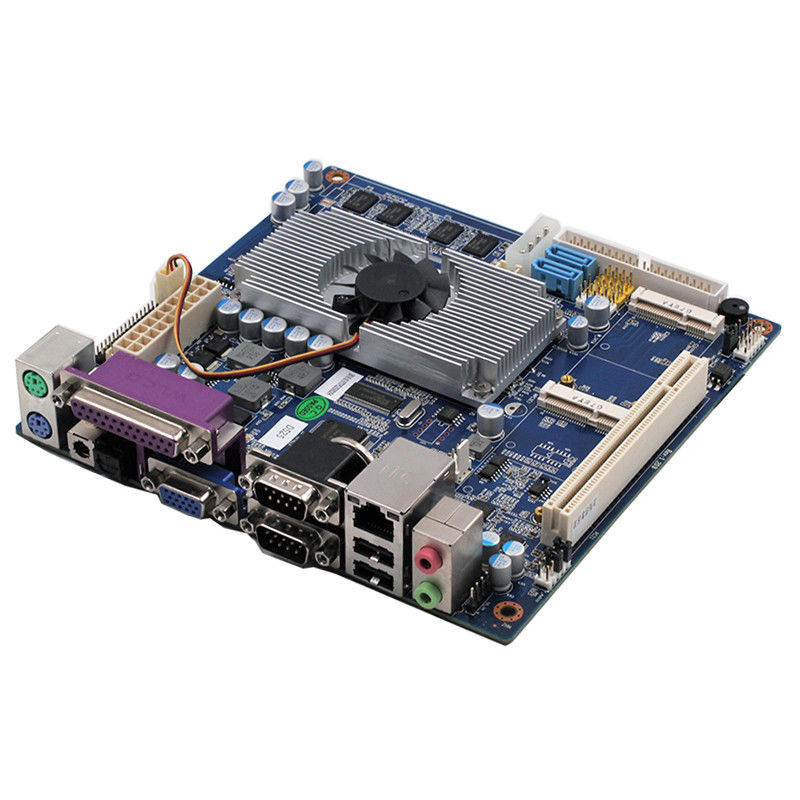

Intel ® Atom® Dual core D525 Industrial MINI ITX Motherboard 6COM integrated 2GB DDR3
Notice:
When you inquiry , you can choose one of the following Model:
ITX-P5801D-PV-D525 Integrated Intel ® Atom® Processor D525 Dual cores 4 threads 1.8Ghz processor
ITX-P5801D-PV-N570 Integrated Intel ® Atom® Processor N550 Dual cores 4 threads 1.5Ghz processor
ITX-P5801D-PV-D525 Integrated Intel ® Atom® Processor N570 Dual cores 4 threads 1.66Ghz processor
Intel ® Atom® Processor D525 Industrial MINI ITX Motherboard integrated 2GB DDR3
Key features
Integrated Intel ® Atom® Processor D525 Dual cores 4 threads 1.8Ghz processor
Single channel DDR3 1066/1333/1600 MHZ
Integrated 2GB DDR3
Onboard single channel18bit LVDS connector
Support LVDS+VGA dual display
5*COM
1*Gigabit LAN
8*USB2.0
2 * SATAII interface
1 * M-SATA Scoket support SSD
Mini-itx 170 x 170 mm
Single input DC12V power supply
Specifications
| Processor | CPU | Integrated Intel ® Atom® Processor D525 Dual cores 4 threads 1.8Ghz processor |
| CPU package | BGA | |
| Chipsets | Intel® Atom D525 processor + ICH8 chipset | |
| BIOS | Award 8MB DIP Flash ROM | |
| RAM | Technical architecture | Single channel 1066/1333/1600 MHZ |
| RAM | Integrated Onboard DDR3 2GB RAM | |
| Video | graphic controller | Intel GMA3150 |
| Dual LVDS | Onboard single channel18bit LVDS connector | |
| VGA | Max spport 1920*1080 | |
| HDMI | No | |
| Dual display | LVDS+VGA dual display | |
| I/O | rear panel I/O |
1*VGA 2*RS232 1*LAN 2*USB2.0 1*MIC-OUT/LINE-OUT 1*P S/2 1*DC 1*LPT |
| Network | controller | 1*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN |
| AUDIO | controller | Onboard HD ALC662 chipset,(Mic-in/Line-out). |
| Super I/O | controller | W38627UHG-1 |
| hardware monitor | watchdog timers | 0-255 secs. |
| Cooler | Aluminum fan or fanless heater | |
| input/output port | USB | 8*USB 2.0 |
| COM | 5*COM expansion headers (1* RS232/488/485 for optional ) | |
| PS/2 | 1*PS/2 expansion headers | |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
| Expansion Sockets | Mini-PCle | 1*MINI PCIE slot,support PCIE and USB equipment |
| SMBUS | ||
| storage | SATA | 2 *standard Sata-II,max transmission speed 3GB/S |
| M-SATA | 1*mini sata socket, Support SANDISK protocol, max transmission speed 3GB/S | |
| Power Supply | Power type | Single-input DC Power supply DC 12V +/-5% |
| Power Consumption | 17W | |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Working temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| MEASURE | Size | 170 x 170 mm |
