| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P2822D-3THM |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ Ivy Bridge I7-3610QM Processor Quad Cores 8 Threads 2.3Ghz | RAM: | Single Channel DDR3 1066/1333/1600MHz Up To 8GB |
|---|---|---|---|
| Ethernet: | 2*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 2*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply | ||
| Highlight: | I7-3610QM Dual Lan Mainboard,ATM Dual Lan Mainboard,mini pc mainboard 2COM |
||

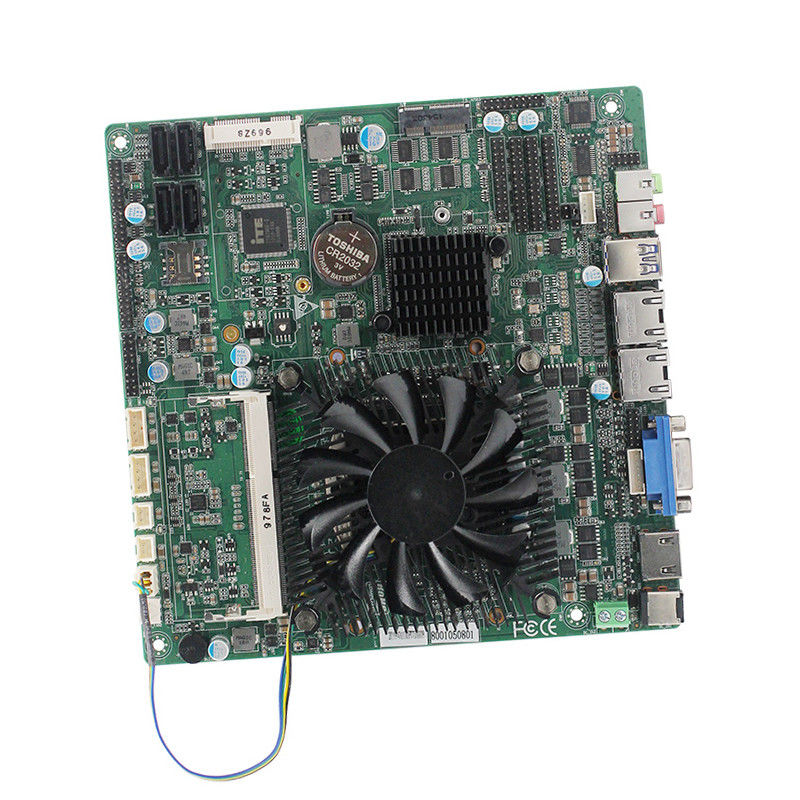

X86 Ivy Bridge i7-3610QM Industrial mini itx pc mainboard 2COM dual LAN Bank ATM motherboard
Notice :
When you inquiry , you can choose the following Model :
ITX-P2822D-3THM-i3 , Integrated Intel® Broadwell i3-3110M dual cores 4 threads 2.4Ghz processor
ITX-P2822D-3THM-i5 , Integrated Intel® Broadwell i5-3210M dual cores 4 threads 2.5~3.1Ghz processor
ITX-P2822D-3THM-i7, Integrated Intel® Broadwell i7-3610QM quad cores 8 threads 2.3~3.3Ghz processor

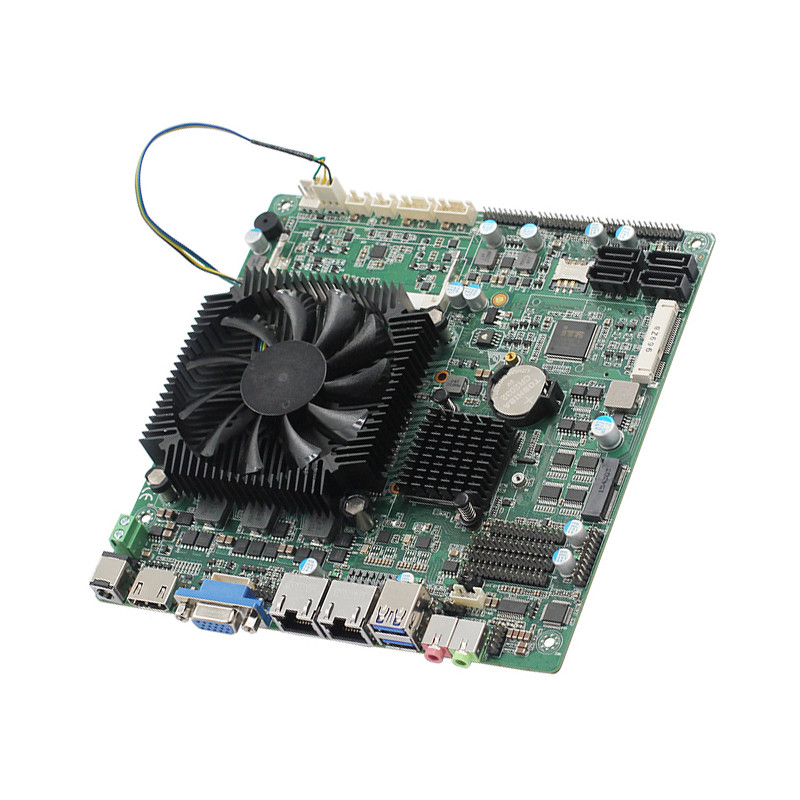

X86 Ivy Bridge i7-3610QM Industrial mini itx pc mainboard dual LAN 2COM Bank ATM mainboard DC 12V power supply
Key features
Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3~3.3Ghz
Support Single channel DDR3 1066/1333/1600MHz up to 8GB
Intel HD graphics 4000
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support 3*SATAII
Support 1*Mini-PCIe M-SATA
2*COM
2*USB3.0
8*USB2.0
2* Gigabit LAN
DC 12V power supply
Dimension: 170mm X 170mm
Specifications
| Processor | CPU |
Intel Mobile 2nd,3rd i3-i5-i7 CPU Integrated Intel® Core™ Ivy Bridge i7-3610QM Processor quad cores 8 threads 2.3Ghz Max Turbo Frequency 3.3Ghz |
| CPU Package | RPGA988 | |
| Chipset | HM77 or QM77 | |
| BIOS | EFI BIOS | |
| Ram | Technical architecture | Single channel DDR3 1066/1333/1600MHz |
| Memory | 1*DDR3 SODIMM 204 Socket,Max support 8GB DDR3 memory,1066/1333MHz. | |
| Video | Graphic controller | Intel HD graphics 4000 (Graphics card type is related to CPU) |
| Dual LVDS | Supports dual channel 24-bit output | |
| HDMI | HDMI aximum resolution support 1920x1080 | |
| VGA | VGA Maximum resolution support 2048x1536 | |
| Dual display support | LVDS+VGA+HDMI Synchronous or asynchronous dual display (two out of three) | |
| Rear Panel I/O | Ports | 1*VGA,1*HDMI,1*LAN,2*USB3.0 2*USB2.0 1*MIC-OUT/LINE-OUT |
| Network | Controller | 1*RTL8111H Gigabit Ethernet,RJ45 port(can choose 2 lan port) |
| Audio | Controller | Realtek HD ALC662 audio decoding(Left and right channel + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware Monitor | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum + copper fan radiator | |
| Input/Output interfaces | USB | 10*USB2.0,2*USB3.0(When dual network cards are used, there are 8 USB2.0 and 2 USB3.0) |
| Com port | 2*RS232 | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIe socket,support PCIE and USB device |
| NGFF | 1*NGFF port(KEY E) | |
| Storage | SATA | 3*standard SATAII interfaces, the maximum transmission rate is 3Gb / s, 1*SATAIII interface is SATA1, the maximum transmission rate is 6Gb / s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol,Maximum transmission rate 6gb/s | |
| Power supply | Power Type | Single Input DC Power Supply,DC12V,+/-5% |
| Working environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90%(non-condensing) | |
| Storage Humidity | 0% ~ 90%(non-condensing) | |
| System support | Windows XP Windows7 Windows8.1 Windows10 Linux | |
| Dimensions | Size | 170*170 mm |
| Weight | 0.6KG |
