| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P2801DW-J1800 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Celeron® J1800 Dual Cores 2 Threads 2.41Ghz Processor | RAM: | Onboard 2GB/4GB RAM |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous Or Asynchronous Display |
| COM: | 2*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |

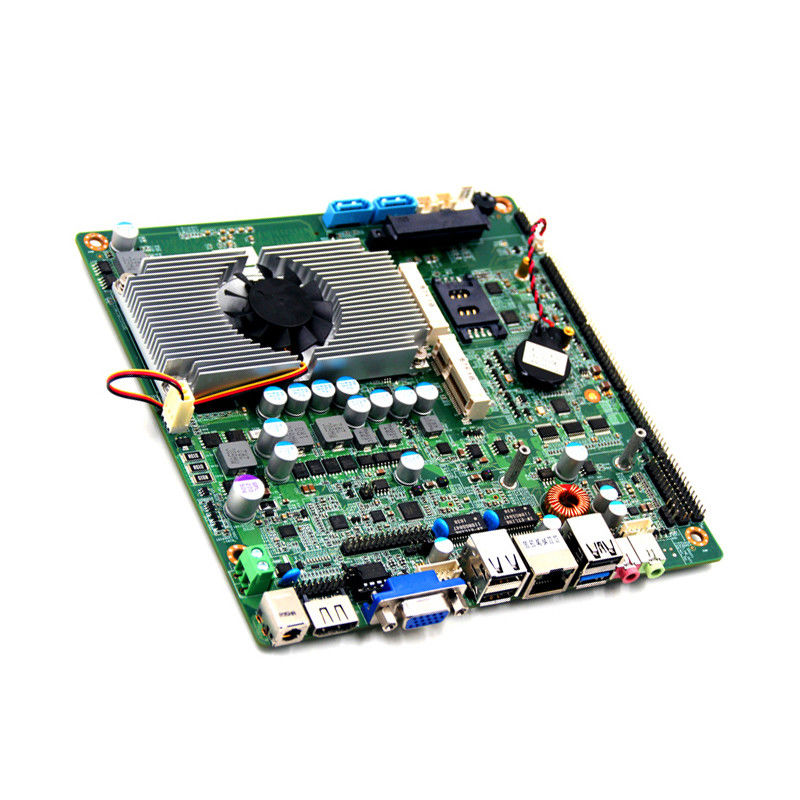

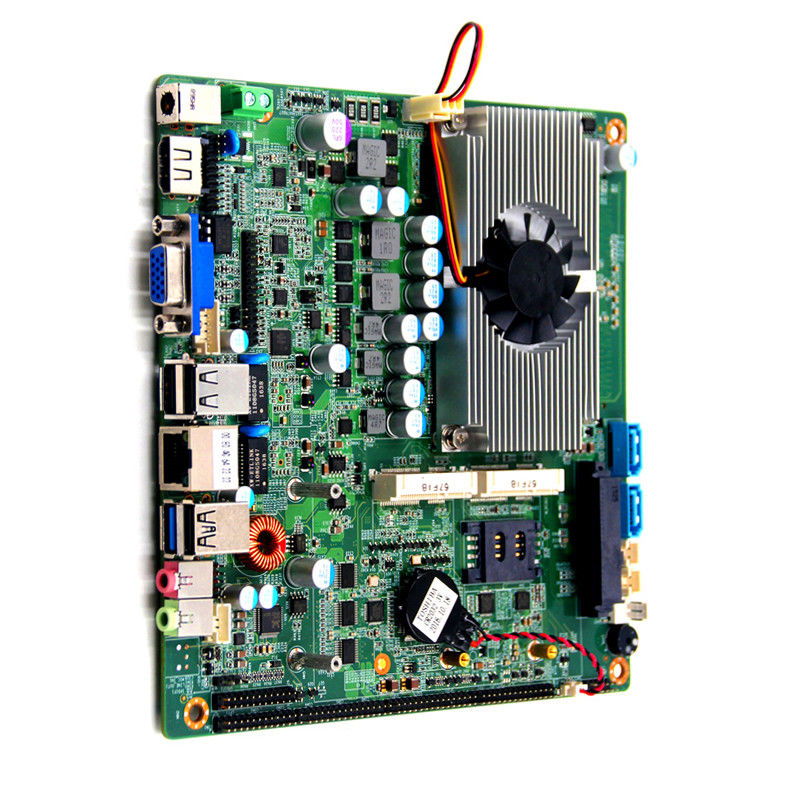

Fanless Celeron® J1800 dual cores industrial mini itx motherboard 2 COM supports touch screen Wide voltage 8-36V power supply Onboard EMMC 32GB/64GB/128GB 2GB RAM
Key features
Integrated Celeron® J1800 dual cores 2 threads 2.41Ghz processor
Onboard 2GB/4GB RAM
Integrated Intel HD Graphics
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display
Support 2*SATA2.0
Support 1* M-SATA Scoket
Onboard EMMC 32GB/64GB/128GB (Optional)
2*COM
8*USB2.0
1* Gigabit LAN
Support for touch screen (4wire 5wire 8wire)
Wide voltage 8-36V power supply
Dimension: 170mm X 170mm
Specifications
| Processor | CPU | Integrated Celeron® J1800 dual cores 2 threads 2.41Ghz processor |
| Burst Frequency 2.58Ghz | ||
| chipset | Support Baytrail-I/D/M serial Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology architecture | Single channel DDR3 1066/1333MHz |
| Onboard 2GB/4GB RAM | ||
| Can add 1*DDR3 SODIMM 240 Socket | ||
| Display | Graphic controller | Integrated Intel HD Graphics |
| Dual LVDS and EDP | LVDS support dual channel 24bits output,Max resolution1920 x 1200 | |
| EDP max support resolution 2560*1600 (LVDS and EDP display for optional) | ||
| VGA | VGA max support resolution 2048x1536 | |
| HDMI | HDMI max support resolution 1920x1200 | |
| Dual display support | LVDS+VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous display | |
| I/O back panel | Port | 1*DC |
| 1*VGA | ||
| 1*HDMI | ||
| 2*LAN | ||
| 1*USB2.0, 1*USB3.0 | ||
| 1*LINE OUT | ||
| 1*MIC | ||
| 1*Digital audio interface | ||
| Internet | controller | 1*RTL8111E-V Gigabit Lan Port,RJ45 Port |
| Audio | controller | Raychem HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | NCT6106D |
| hardware controller | watchdog timer | 0-255 Seconds,Provide a watchdog routine |
| Cooler | Aluminum fan heatsink(fanless optional) | |
| USB | 8*USB2.0 Max support +5V/1A | |
| Input/output interface | Com | 2*RS-232 |
| PS/2 | 1*PS/2 pin connector (supports PS/2 keyboard and mouse) | |
| Touch screen | Support for touch screen (4wire 5wire 8wire only one set of USB57 pins is available when the touch screen is available) | |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level | |
| Expansion wire | Mini-PCle | 2*Mini-PCIe socket,support PCIe and USB equipment |
| storage | SATA | 2*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1* M-SATA Scoket,Support SANDISK Protocol,Maximum transfer rate 3Gb/s | |
| EMMC | onboard 32GB/64GB/128GB (Optional) | |
| Power Supply | Power Type | Wide voltage 8-36V power supply |
| Power consumption | 20W | |
| Work environment | Working temperature | -20°C~60°C (-32°F~140°F) |
| Storage temperature | -40°C~85°C (-104°F~185°F ) | |
| Working humidity | 10%~90% (non-condensing) | |
| Storage humidity | 10%~90% (non-condensing) | |
| Measure | Size | 170mm x 170 mm |
| Weight | 0.5KG |
