| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P2441D-H81 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | LGA1150 Interface Intel 4th I3-i5-i7/Pentium/Celeron CPU | RAM: | Onboard 2GB/4GB DDR3L |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | LVDS / VGA / HDMI |
| COM: | 2*COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |

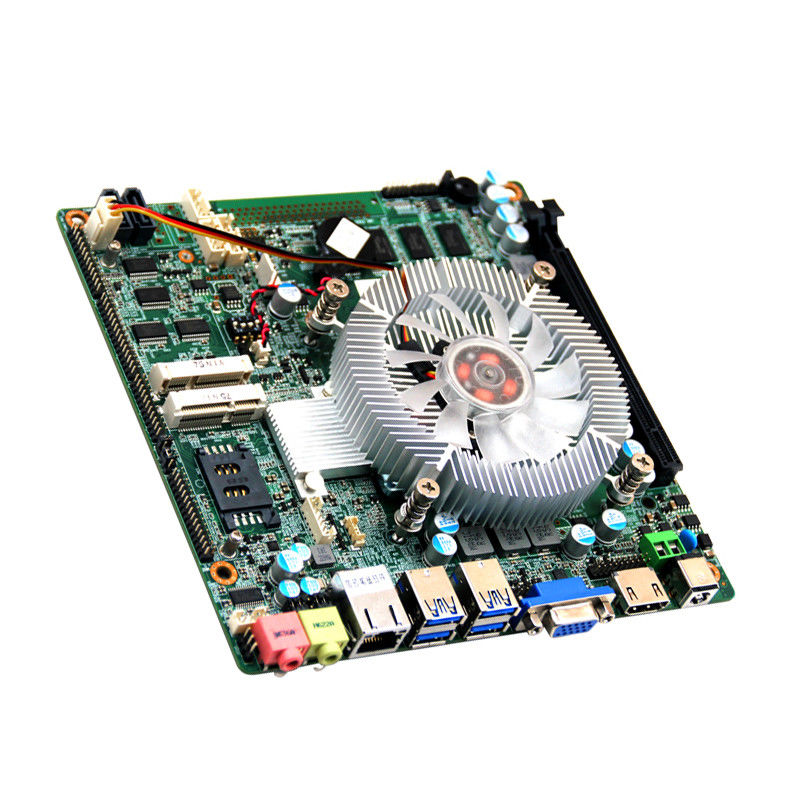

Haswell Dual Core H81 Chipset motherboard lga 1150 4*USB3.0/USB2.0,4*USB 2.0 2COM, 8*GPIO industrial motherboards
With 1*PCIE X16
Key features
Support LGA1150 interface Intel 4th i3-i5-i7/Pentium/Celeron CPU
Intel® H81/HM86 Express Chipset Optional
Signal Channel DDR3 1066/1333/1600Mhz
Onboard 2GB/4GB DDR3L
Integrated Intel® HD Graphics
Support LVDS / VGA / HDMI display
2*COM
1*Gigabit LAN
4*USB2.0
4*USB3.0
4* SATA3.0
1* M-SATA Scoket
1*PCIe X16
Mini-itx 170 x 170 mm
DC 12V Power supply
Specifications
| Processor | CPU | Support LGA1150 processor, Intel 4th i3-i5-i7 CPU (optional) |
| CPU Package | BGA | |
| Chipset | Intel® H81/HM86 Express Chipset Optional | |
| BIOS | EFI BIOS | |
| RAM | Technology framework | Signal Channel DDR3 1066/1333/1600Mhz |
| Capacity | Onboard 2GB/4GB DDR3L,maximum up to 8GB | |
| Socket | 1*PCIE 16X port | |
| Video | Graphic controller | Intel HD Graphics 3000/4000(According to CPU model) |
| Dual LVDS | Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200 | |
| HDMI | Resolution maximum:1920*1200 | |
| VGA | Resolution maximum:2048x1536 | |
| Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display | |
| I/O Back Panel | Ports | 1*HDMI,1*VGA,1*LAN.4*USB3.0,,1*MIC-OUT/LINE-OUT,1*DC |
| Network | Controller | 1*RTL8111E-V 1000M LAN,RJ45 ports |
| Audio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Standard H81 Fan | |
| Input/Output Interface | USB | 4*USB3.0/USB2.0,4*USB 2.0 expansion header),Max. supported 5V/1A |
| Serial ports | 2*RS232 | |
| PS/2 | No. | |
| GPIO | 8*GPIO expansion header(8 bit),Free definition of input/output,3.3V@24mA electrical level | |
| Extended bus | Mini-PCle | 2*Mini-PCIE socket,Support PCIe and USB Device |
| Storage | SATA | 4*SATAIII Maximum transmission rate 3Gb/s |
| M-SATA | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s | |
| Power Supply | Power Type | Single input DC power supply ,DC12V,+/-5%,Support AT/ATX power supply |
| Power Consumption | 35W | |
| Working Environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Operating Humidity | 0% ~ 90% (non-condensing) | |
| Storage Humidity | 0% ~ 90% (non-condensing) | |
| Form factor | Size | 170 x 170 mm |
| Weight | 0.5KG |
