| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | ITX-P1441D-H310 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel 8/9th Genneration Core, Pentium, Celeron, Serial Processor | RAM: | 1*DDR4 SO-DIMM Ram Socket, MAX 32GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | Support LVDS/EDP+HDMI1+HDMI2 Three-screen Synchronous Or Asynchronous Display |
| COM: | 1*DB9 COM | Size: | 170 X 170 Mm |
| Power: | DC 12V Power Supply |

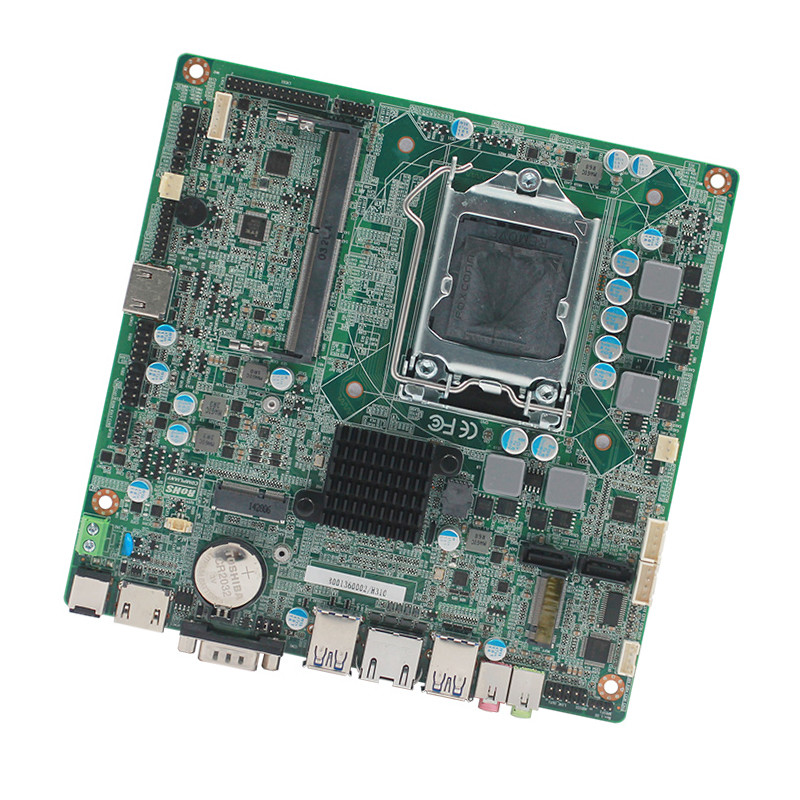

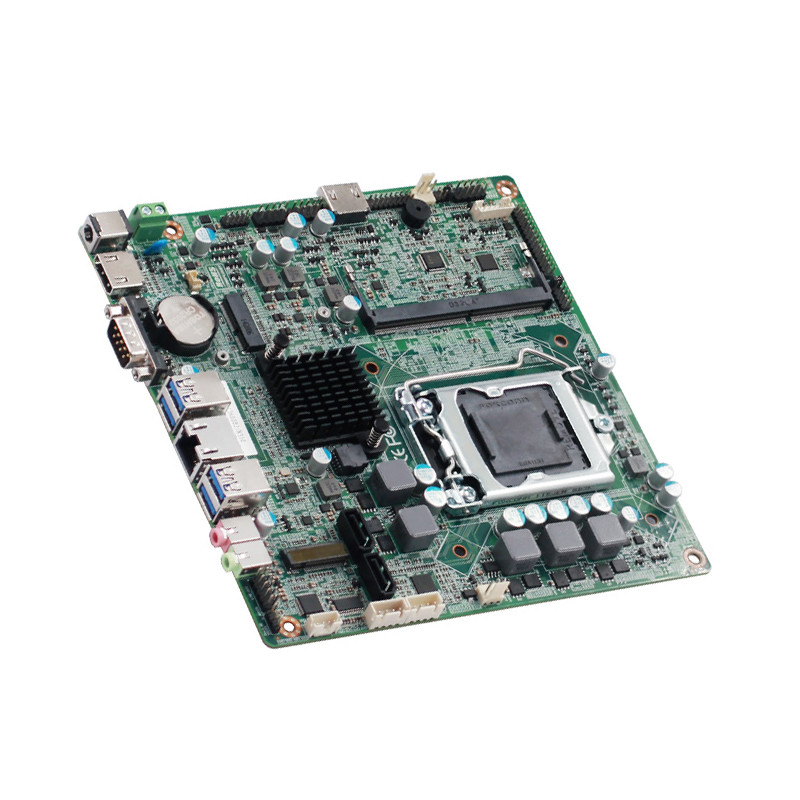

H310 chipset industrial motherboard In-tel 8/9th generation processor mini itx x86 DDR4 for all in one pc
Key features
Support Intel 8/9th genneration Core,Pentium,Celeron,serial processor
Support 1*DDR4 SO-DIMM ram socket,MAX 32GB
Integrated Intel® HD Graphics
Support LVDS/EDP+ HDMI Synchronous or asynchronous display
Support LVDS/EDP+HDMI1+HDMI2 Three-screen synchronous or asynchronous display
1*DB9 COM
1*Gigabit LAN
4*USB2.0
4*USB3.1
1* M.2
2*Standard SATAIII Ports
Mini-itx 170 x 170 mm
DC 12V Power supply
Specifications
| Processor System | CPU | Support Intel 8/9th genneration Core,Pentium,Celeron,serial processor; |
| CPU PACKAGE | Intel LGA 1151 | |
| Chipset | Intel H310 | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Single channel DDR4-1866/2133/2400/2666 1.2V ram,MAX Support 32G |
| Socket | 1*DDR4 SO-DIMM ram socket,MAX support 32GB | |
| Video | Graphic controller | Integrated INTEL HD Core Graphics,graphics models related to CPU |
| Dual LVDS and EDP | LVDSsupport dual channel 24bit output,Max support resolution 1920 x 1200 EDP;Max support resolution 4096*2304@60Hz(LVDS or EDP only can choose one) | |
| HDMI | HDMIsupport MAX resolution 4096*2160@30Hz | |
| Dual Display | LVDS/EDP+ HDMI1,LVDS/EDP+ HDMI2,HDMI1+HDMI2 SYNC or ASYN display | |
| Tripple Display | LVDS/EDP+HDMI1+HDMI2 SYNC or ASYN display | |
| I/O Back Panel | ports |
1*DCIN 1*DB9 2*HDMI 1*LAN 4*USB3.1 1*LINE OUT 1*MIC |
| Network | Controller | 1 Realtek RTL8111H,10M/100M/1000Madaptive network card |
| Audio | Controller | Realtek HD ALC662 Audio decoding (left and right channels + microphone) |
| Super I/O | Controller | IT8613E |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan (supports automatic and manual fan speed adjustment) | |
| Input/output interface | USB |
4*USB3.1 4*USB2.0 (pin header) maximum support +5V/1.5A |
| COM | 1*DB9 COM,Suport RS232 or 1*RS485 1X2 2.0 plug pin(Choose one of the two functions, select by changing the resistance and jumper) | |
| PS/2 | 1*PS/2Pin interface (support PS/2 keyboard and mouse) | |
| GPIO | 8 bits, provide routines, freely define input/output, 3.3V@24mA level | |
| Expansion bus | M.2 | Support M.2 CNViprotocol WIFI |
| Storge | SATA | 2 standard SATAIII interfaces, maximum transfer rate 6Gb/s |
| M.2 NVMe/SATA | NGFF_SSD1:suport M KEY 2240/2260/2280 NVMeprotocol or SATA SSD | |
| Power supply | Power type | DC 12V power supply (95W CPU matches with≥180W power supply,65W CPU matches with ≥120Wpower supply) |
| working environmen | working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Support system | OS | Windows10 Linux |
| physical dimension | size | 170 x 170 mm |
| N.W | 0.5KG |
