| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPS-PM04B-I7 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel® Core™ Haswell I7-4500U Dual Cores 4 Threads 1.8~3.0Ghz | RAM: | Onboard 2GB / 4GB DDR3L |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | VGA / HDMI |
| COM: | 1* RS232 | NGFF_SSD: | 1*NGFF_SSD Port |
| Power: | Single Input DC Power Supply, DC12-19V | Size: | 170 * 190 Mm |
| Highlight: | OEM OPS motherboard,OPS motherboard 4G RAM,OEM haswell motherboard |
||
Notice :
When you inquiry , you can choose the following Model :
OPS-PM04B-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
OPS-PM04B-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
OPS-PM04B-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

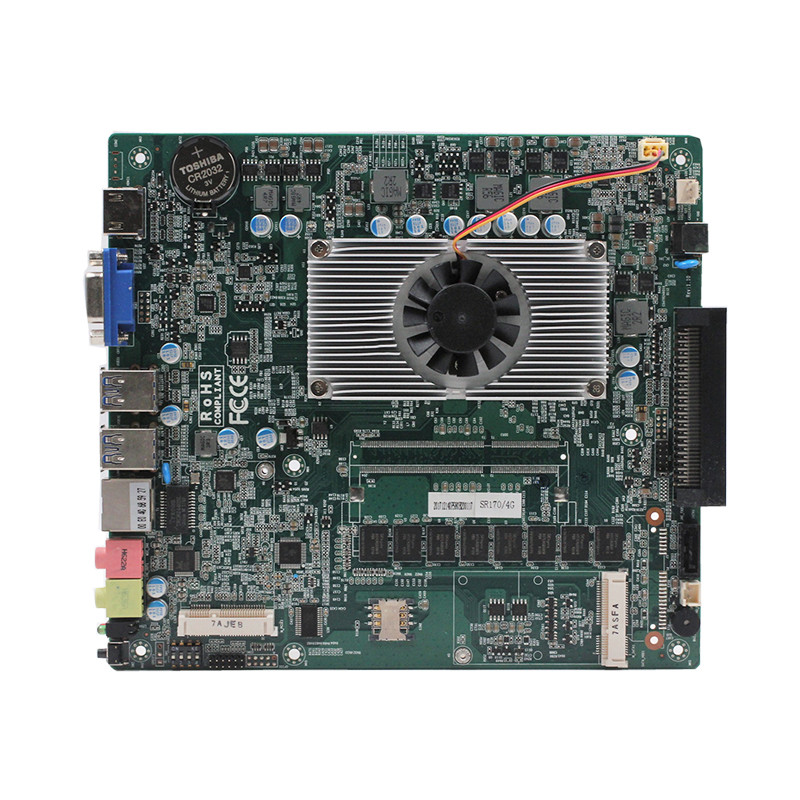

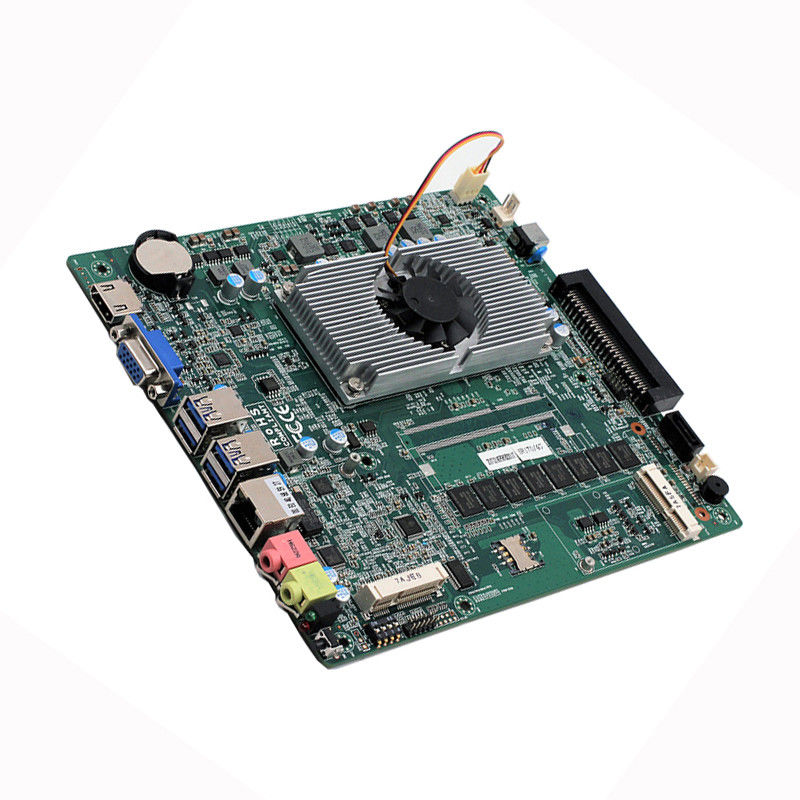

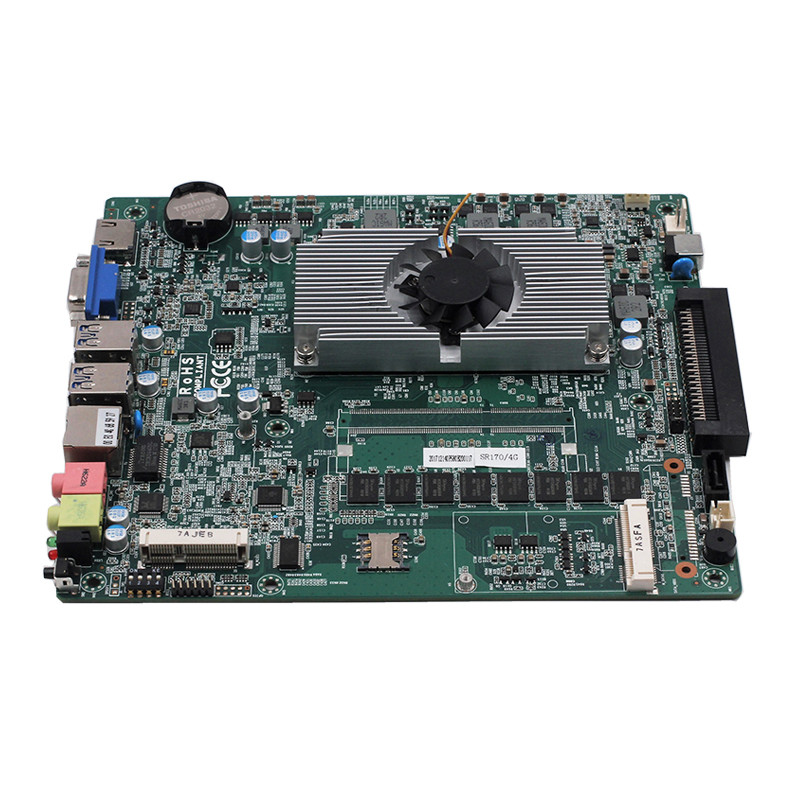

OEM Haswell 4th gen i3-4010U I5-4200U I7-4500U OPS Motherboard Onboard 4G RAM With RS-232
Key features
Integrated Intel® Core™ Haswell i7-4500U dual cores 4 threads 1.8~3.0Ghz
Onboard 2GB / 4GB DDR3L
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*Mini-PCIe MSATA Socket
1*Gigabit LAN
1*VGA, 1*HDMI
4*USB3.0
Size: 170 * 190 mm
Single input DC power supply, DC12-19V, +/-5%
Specifications
| Processor | CPU | Integrated Intel® Core™Haswell i7-4500U dual cores 4 threads 1.8~3.0Ghz |
| CPU package | BGA | |
| chipset | intel Haswell-U serial SOC | |
| BIOS | AMI 64M BIOS | |
| Memory | Technology architecture | singelDDR3L 1066/1333/1600MHz |
| capacity | Onboard 2GB4GB DDR3L | |
| socket | Can add one ram socket ,Max to be 8GB Ram | |
| Video | Graphics controller | Intel HD Graphics 4400(I3-4010U graphics card)The graphics card is related to the CPU |
| VGA | VGA max support 2056*1536 resolution | |
| HDMI | MAX Resolution support(HDMI1.4)3200*2000@60HZ,support 4k display | |
| Dual display | HDMI and VGA Synchronous or asynchronous display | |
| I/O Panel Port | Port | 1*VGA |
| Internet | controller | 1*RTL8111E-V Gigabit Ethernet Port,RJ45Port |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | IT8613 |
| Hardware controller | Watchdog timer | 0-255 Seconds, providing a watchdog routine |
| Cooler | Aluminum fan radiator | |
| Input /output Port | USB | 4*USB3.0 compatible with USB2.0 / 1.1,Max support +5V/1A |
| Com | 1*RS-232 | |
| Digital audio | 1*3pin Pin | |
| PS/2 | without | |
| GPIO | 8 bits, provide routines, freely define input / output, 3.3V @ 24mA level | |
| Expansion wires | Mini-PCle | 1*Mini-PCIe Socket |
| Storage | SATA | 1*standard SATAIII Port ,1*SATA_HDD,Interface maximum transfer rate of 6Gb / s |
| M-SATA | 1 *Mini-PCIe MSATA Socket, support SANDISK protocol, the maximum transfer rate of 6gb / s | |
| Power supply | Power type | Single input DC power supply, DC12-19V, + / - 5% |
| Working temperature | Power consumption | 35W |
| Working temperature | -20℃ ~ +60℃ | |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%Relative humidity, no condensation | |
| Storage humidity | 0% ~ 90%Relative humidity, no condensation | |
| Form factor | Size | 170 * 190 mm |
| Weight | 0.5KG |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
