| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPS-PM07-3865U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Kaby Lake-U 3865U Dual Cores 2 Threads 1.8Ghz | RAM: | 1*DDR4 SODIMM 260 Socket |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | Display: | VGA / HDMI |
| COM: | 1* RS232 | NGFF_SSD: | 1*NGFF_SSD Port |
| Power: | Single Input DC Power Supply,DC12-19V | Size: | 165*114.2 Mm |
| Highlight: | 19V OPS motherboard,3865U OPS motherboard |
||

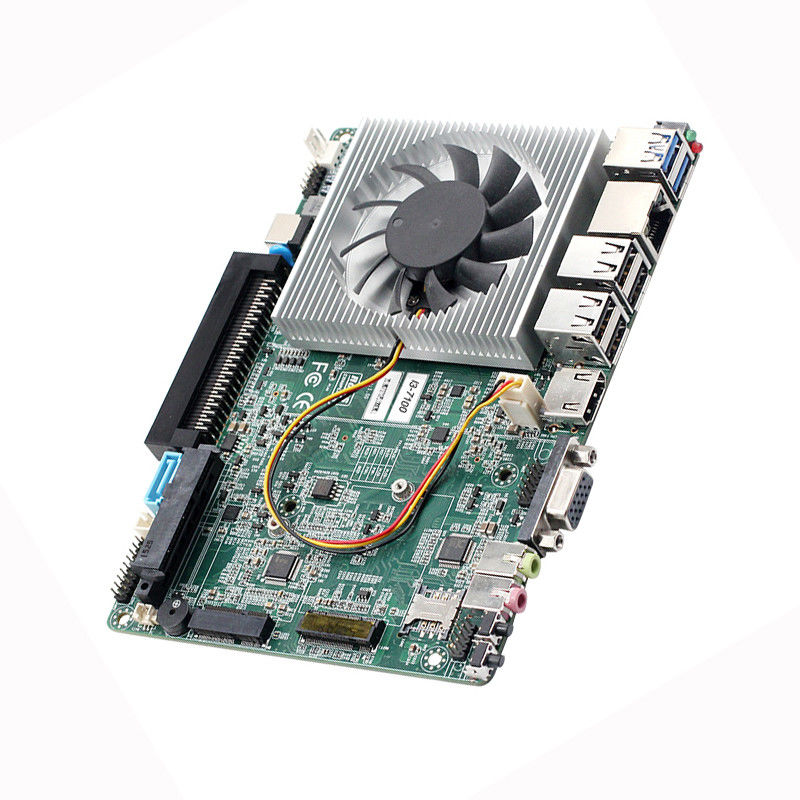

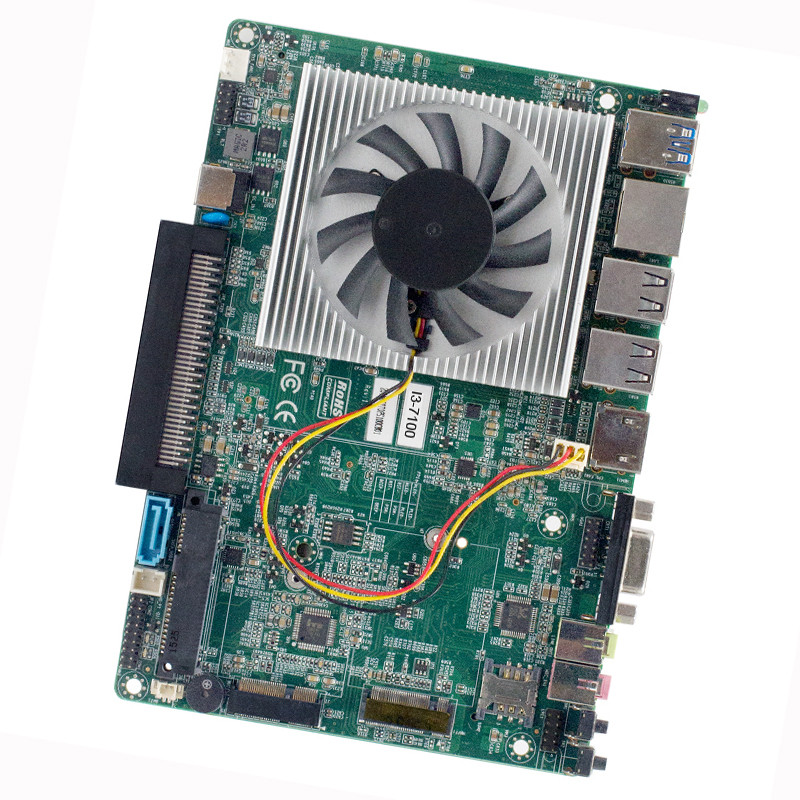

DC12-19V Intel Mobile Kaby lake-U 3865U OPS motherboard with1*RS-232 for Electronic Whiteboard
The Model No.OPS-PM07-3865U onboard Celeron 3865U, support DDR4 2133MHz , support 1*SATA3.0 maximum transfer rate of 6Gb/s,
with 1*NGFF_SSD Port, 1*RS232 pin interface, Dimension : 165*114.2 mm
Specifications
| Processor | CPU |
Integrated Kaby lake-U 3865U dual cores 2 threads 1.8Ghz 2 MB Intel® Smart Cache 4GT/s bus speed TDP 15W
|
| CPU package | BGA | |
| chipset | Intel Kaby lake-U serial CPU | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133MHz |
| socket | 1 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller |
Intel® HD Graphics 610 graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output | |
| Dual display | HDMI+VGA sync or asynchronous display | |
| I/O back panel | Port | 1*VGA,1*HDMI,1*LAN,2*USB3.0/,4*USB2.0,1*MIC-OUT/LINE-OUT, 1 * Power indicator, 1 * Hard disk indicator 1 * , 1 * restart button |
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | controller | IT8163E |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum fan heatsink | |
| Input / output interface | USB |
2*USB3.0 compatible with USB2.0 / 1.1,max support +5V/1A 4*USB2.0 |
| COM | 1*RS-232 | |
| Expansion bus | NGFF | 1*NGFF Port(KEY E) |
| NGFF | 1*NGFF port , support 3G/4G Module | |
| storage | SATA | 1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD) |
| SATA_HDD | 1*SATA_HDD hard disk interface, maximum transfer rate of 6Gb/s (and SATA two) | |
| NGFF | 1*NGFF_SSD Port | |
| Power type | Power type | Single input DC power supply,DC12-19V,+/-5% |
| Power consumption | 35W | |
| Working temperature | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| size | size | 165*114.2 mm |
| weight | 0.5KG |
